Features

  • Classification:
    Heavy-Duty class 4
  • GVWR:
    14,330 lbs
  • Payload Capacity:
    7,000 lbs
  • Front Axle Rated Loading:
    4,409 lbs
  • Rear Axle Rated Loading:
    9,920 lbs
  • Length:
    283 inches
  • Width:
    78 inches
  • Height:
    93 inches
  • Charging:
    Dual (AC / DC)
    Level-2, J1772, 11 kW, 11 hrs
    DCFC, CCS-1, 61kW, 2 hrs
    Wireless DC* (optional), 60 kW, 2 hrs
  • Battery Size:
    118 kWh
  • Max Seating Capacity:
    2
  • Range:
    Up to 150 miles
  • Fuel Economy:
    48 mpge, 0.77 kWh/mi, 1.3 mi/kWh
  • Top Speed:
    68 mph
  • Motor Power:
    150 kW max
  • Transmission:
    None / Direct Drive
  • Altoona Certified:
    EV Star Min-E Bus
  • CARB Certified:
    Yes
  • Battery Capacity:
    118 kWh
  • Battery Chemistry:
    LiFePo4
  • Voltage:
    576 V
  • Tires:
    205/75R 17.5 (qty. 6)
  • HVAC:
    Electrical
  • Wheelbase:
    170 inches
  • Approach:
    14.7 degrees
  • Design Life:
    10 years
  • Frame / Body / Roof:
    Steel
  • Vehicle Communication:
    CAN BUS, J1939
  • Buy America:
    Specification can vary by region, application, availability
  • Voucher Incentives (subject to availability):
    For additional grant assistance, please call (909) 308-0960 or email sales@greenpowermotor.com
EV Star CC

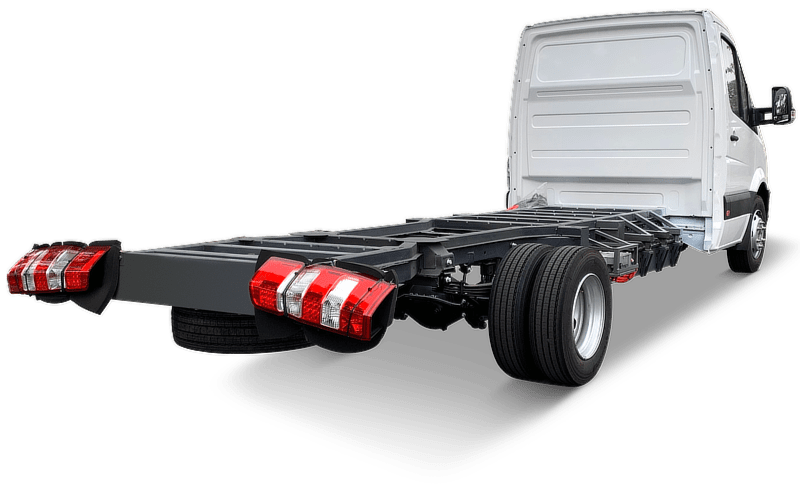

ABOUT THE EV STAR CC

The EV Star Cab and Chassis was designed to take on any mid and last mile delivery while maintaining the benefits of being a zero-emissions vehicle. The EV Star CC was made to have your body on our highly rated chassis. With a carrying capacity of 6,000 pounds and a range of 150 miles, the cab and chassis is the perfect vehicle for your fleet.
